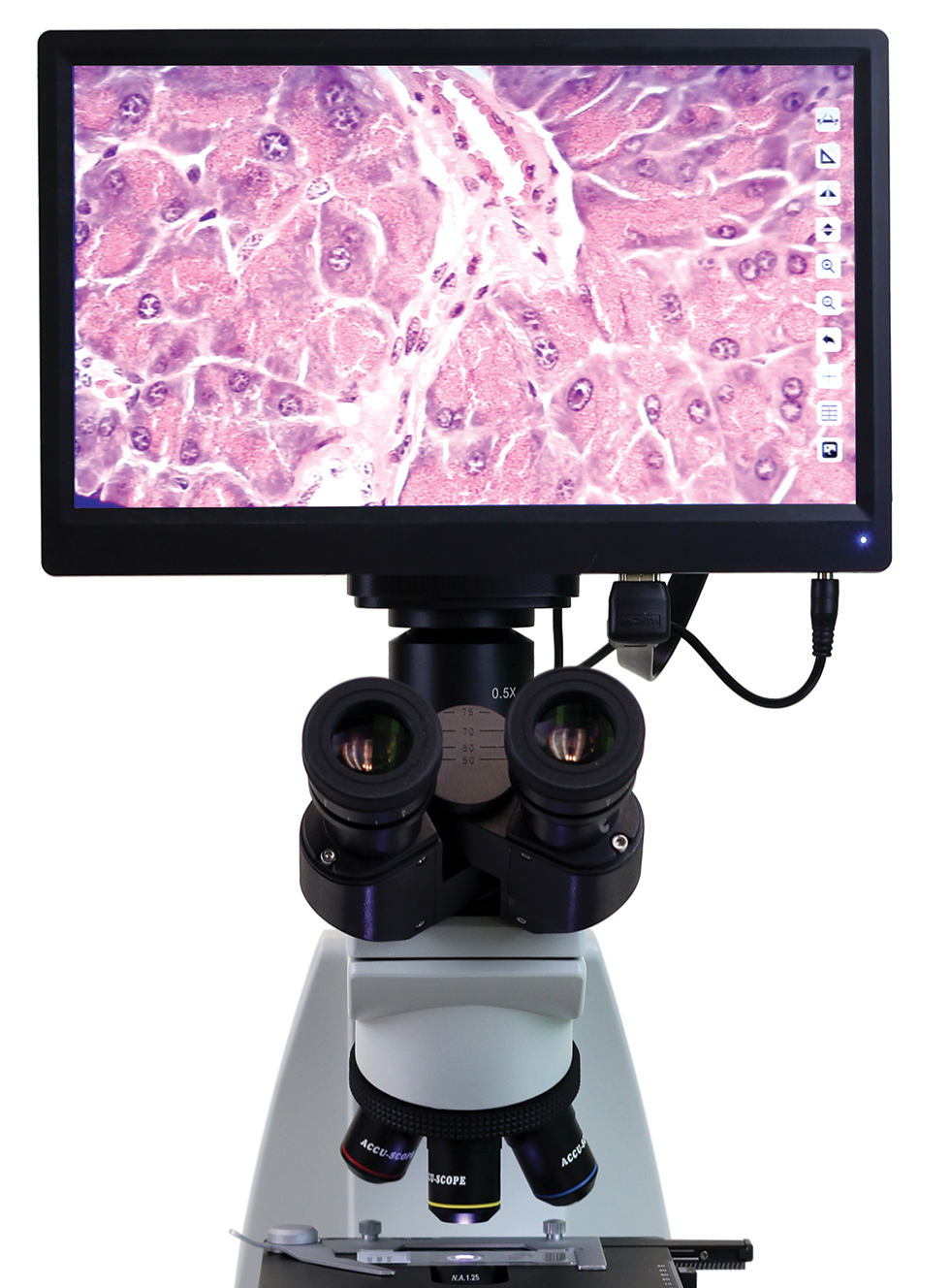

VETSCAN HDmicroscope

More Than Just a Microscope

The HDmicroscope is a true multi-mode microscope. This dynamic system can be used for multiple tasks in your clinic. The functions include a lab bench microscope to read all slides, a consulting and revenue generating imaging system to use for client consultations, a digital capture system to document microscopy images and import to patient files, and a real-time imaging system allowing you to have pathology consults and second opinions.

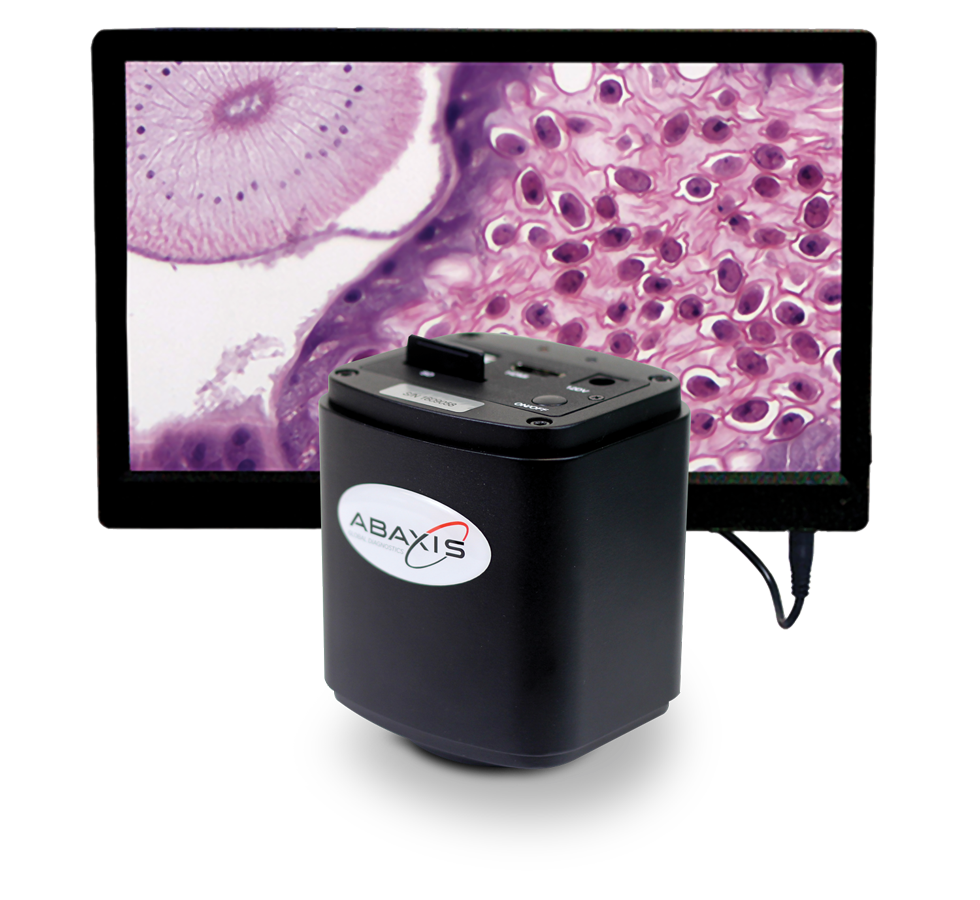

Camera & Monitor System

Superior Performance & colour

Built upon decades of microscopy and digital imaging experience, the HDmicroscope incorporates dual FPGA processors and unique algorithms that produce perfect colour reproduction. The innovative technology of the HD camera offers Full 1080p 60fps video preview for HD output without any lag time or compression.

VETSCAN HDmicroscope

One Solution for Single Use, Teaching, and Group Presentations

Built-in Mouse Control Software for HDMI Viewing & Recording Without a Computer

The advanced design of the camera and monitor system features software inside the camera and an external HDMI port allowing users to connect directly to the HD monitor for live/real time viewing. This on-board software enables the user to control the camera with a click of the mouse, making the HDmicroscope the ideal choice for teaching, group presentations, or when a computer set-up is simply not an option.

VETSCAN HDmicroscope

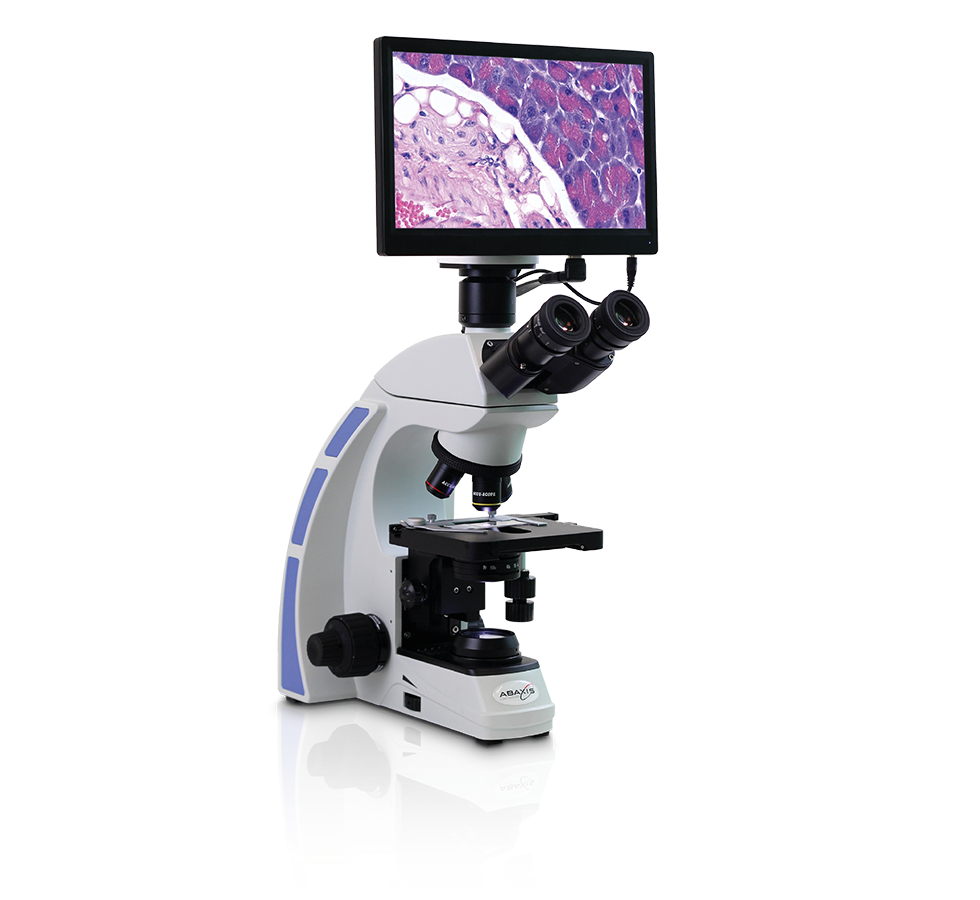

Advanced Digital Imaging Solution

The VETSCAN HDmicroscope is a true multimode microscope. This dynamic system can be used for multiple tasks in your clinic

Learn more about the Specifications.

VETSCAN HDmicroscope

Size

Height  60.3 cm (with screen)

Width  28 cm (with screen)

Depth  35.5 cm

Key Facts at a Glance

  • Trinocular design
  • LED illumination
  • Fluorescent imaging
  • Built-in software
  • Laboratory grade optics
  • Innovative design
  • Live HD video
  • User friendly

Details

Optical system AIS E-Plan optical system
Head Siedentopf binocular viewing head, inclined 30°
Eyepiece PL10X/20mm diopter adjustable eyepiece, 20mm field of view
Nosepiece Reversed quadruple nosepiece
Objective AIS E-Plan achromat objective (4X, 10X, 40X, 100X)
Focusing system Coaxial coarse & fine focusing system, with stop limit & tension adjustment. Travel range: 25mm. Fine focusing precision: 0.002mm
Stage Built in low position coaxial control mechanical stage, area 140x132mm, moving range 76x50mm
Condenser Built-in Koehler illuminator systems, Pre-centered. Iris diaphragm Koehler illuminator condenser and mirror optional
Illuminator Universal power supply 90 ~ 240V voltage, 3W LED light with variable intensity control
Operation Environment • Indoor use • Altitude: max. 2000m • Environment temperature: 5°C - 40°C (41°F - 109°F) • Max. relative humidity: 80% at 31°C (88°F), and then declined linearly. 70% at 34°C (93°F), 60% at 37°C (99°F), 50% at 40°C (104°F) • Degree of pollution: 2 (refer to IEC664)
